BetaFPV C04 FPV Camera

BetaFPV C04 FPV Camera

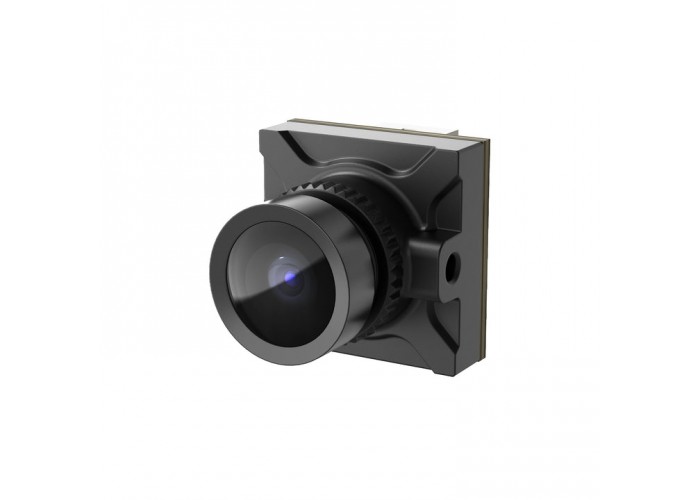

BetaFPV C04 FPV Camera is an ultra-light and compact analog FPV camera designed specifically for micro quadcopters (Tiny Whoop) such as the Aquila20 Analog series. With a weight of only 2.74 g and a high resolution of 1200TVL, it provides a clear and rich image without weighing down the drone.

The camera has an ultra-wide viewing angle (FOV 160°), which is great for dynamic flights in confined spaces, freestyle and racing. The model is designed for a standard 14 mm mount, so it is a universal solution for repairing, upgrading or quickly replacing the camera on most whoop frames.

Key advantages:

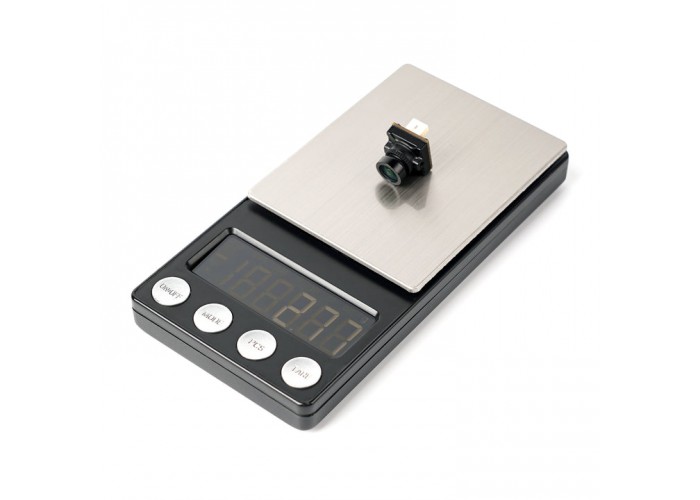

Ultra-light and durable: weighing only 2.74 g does not affect flight characteristics and flight time.

Clear image: 1/3" CMOS matrix with 1200TVL resolution transmits bright and realistic colors.

160° viewing angle: provides excellent orientation in space during high-speed maneuvering.

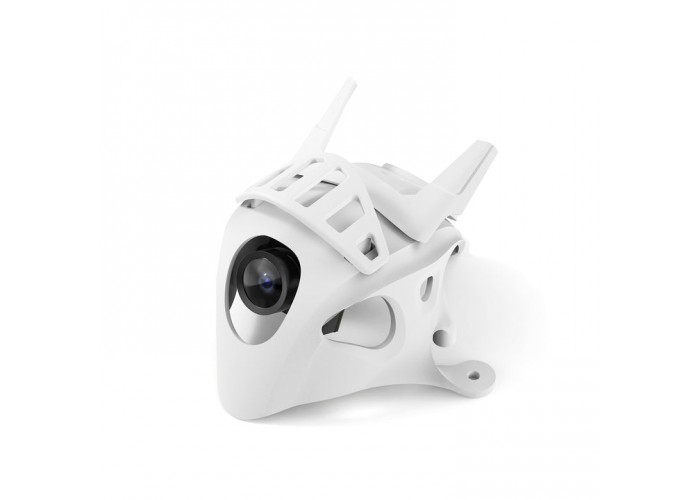

Wide compatibility: direct replacement for Aquila20 Analog quadcopters and frames with a camera mount size of 14 mm.

Key features

Image sensor: 1/3" CMOS Sensor

Horizontal resolution: 1200TVL

Field of view (FOV): 160°

TV system: NTSC (aspect ratio 4:3)

Power supply: 5 V

Weight: 2.74 g

Dimensions: 14.3 × 14.0 × 19.0 mm

Camera mount: 14 mm

Package included

BetaFPV C04 FPV camera — 1 pc.

JST 1.25 3-Pin connection cable — 1 pc.

M2×3 mounting screws — 3 pcs.
